ConceptSystem 59Pa
ConceptSystem 59 Parallel (Pa) offers a broad range of aluminium profiles developed for quality windows at a competitive price. The non insulated but robust solution is intended for warm climates and suits any style of building. The Parallel variant shows a 49 mm visible frame over a 59 mm construction depth with glazing up to 35 mm, and is rated 44 (-2; -4) dB for sound reduction.
from 75€
Calculate Cost
Where ConceptSystem 59Pa fits
A non-insulated parallel system for openings where thermal performance is not the governing criterion.

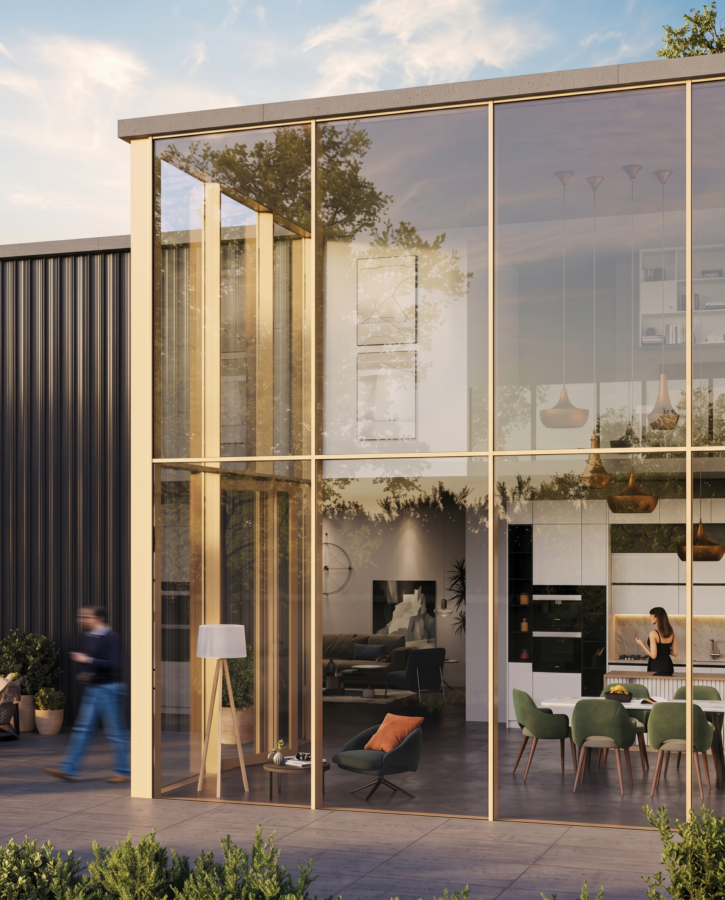

Warm-climate buildings
Without a thermal break the system is lighter and less costly, which suits regions where the envelope is not required to resist winter heat loss.

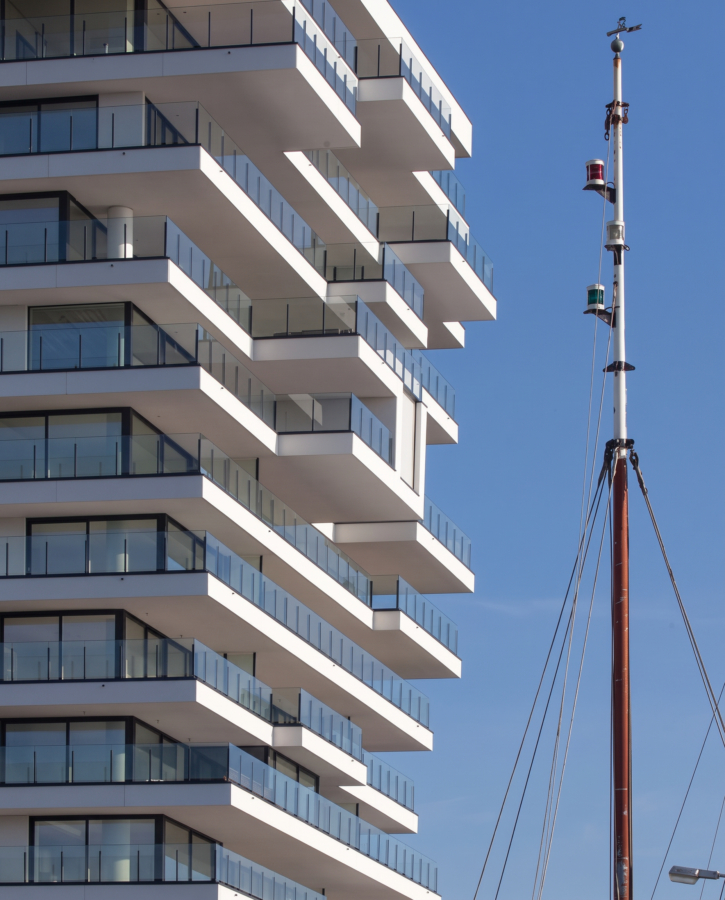

Unheated and ancillary spaces
Garages, stores, stairwells and covered circulation can be glazed to the same air and wind classes as the main elevation at lower outlay.

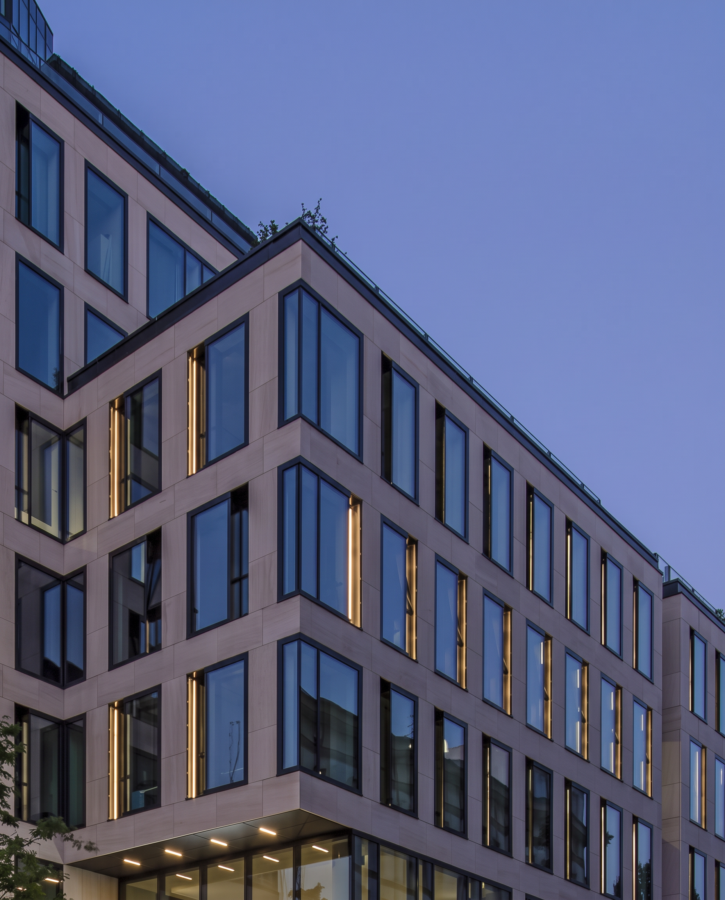

Cost-controlled schemes
A broad profile range and reduced visible widths for both fixed and opening lights let volume projects keep a consistent appearance within budget.
Technical indicators
- Minimum visible frame width (Parallel)
- 49 mm
- Minimum visible frame width, inside (Parallel)
- 31 mm
- Minimum visible width, concealed inward-opening door (Parallel)
- 61.5 mm
- Overall system depth, frame (Parallel)
- 50 mm
- Overall system depth, inside (Parallel)
- 59 mm
- Rebate height
- 25 mm
- Glass thickness
- up to 35 mm
- Sound reduction (Rw)
- 44 (-2; -4) dB
- Air permeability
- up to 600 Pa (class 4)
Advantages
ConceptSystem 59Pa is the non-insulated member of the ConceptSystem family. It gives the profile range and tested air, wind and water classes of the platform without a thermal break, and is specified where heat loss is not the deciding factor.
- Non-insulated but structurally robust, developed specifically for warm climates.
- Wind load class C5 at 2000 Pa and watertightness class E750 at 750 Pa.
- Air permeability class 4 at 600 Pa, matching the insulated systems in the range.
- Reduced visible widths for both fixed and opening lights across the profile range.
- Balanced relationship between price, quality and functionality for cost-controlled projects.
